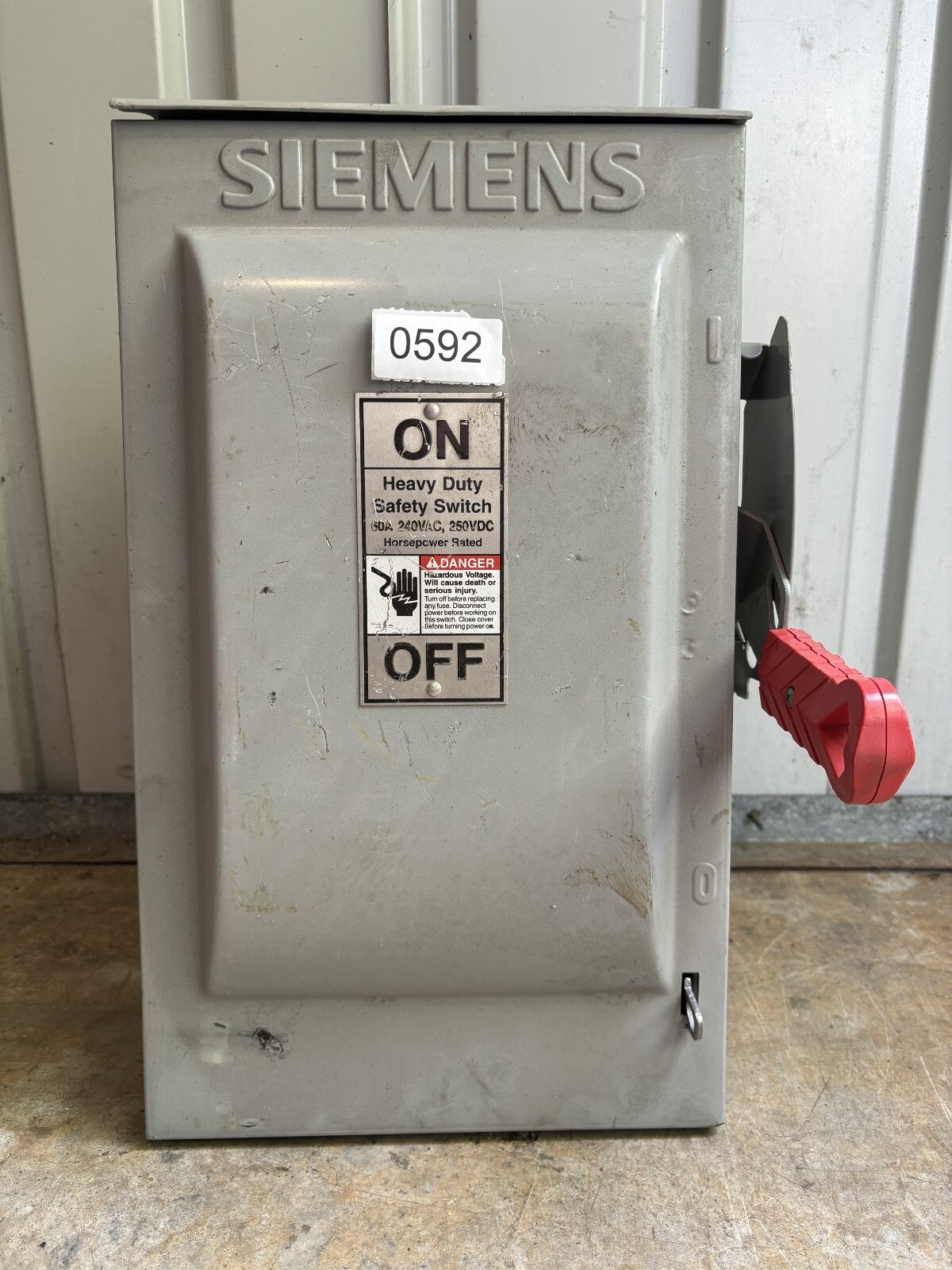

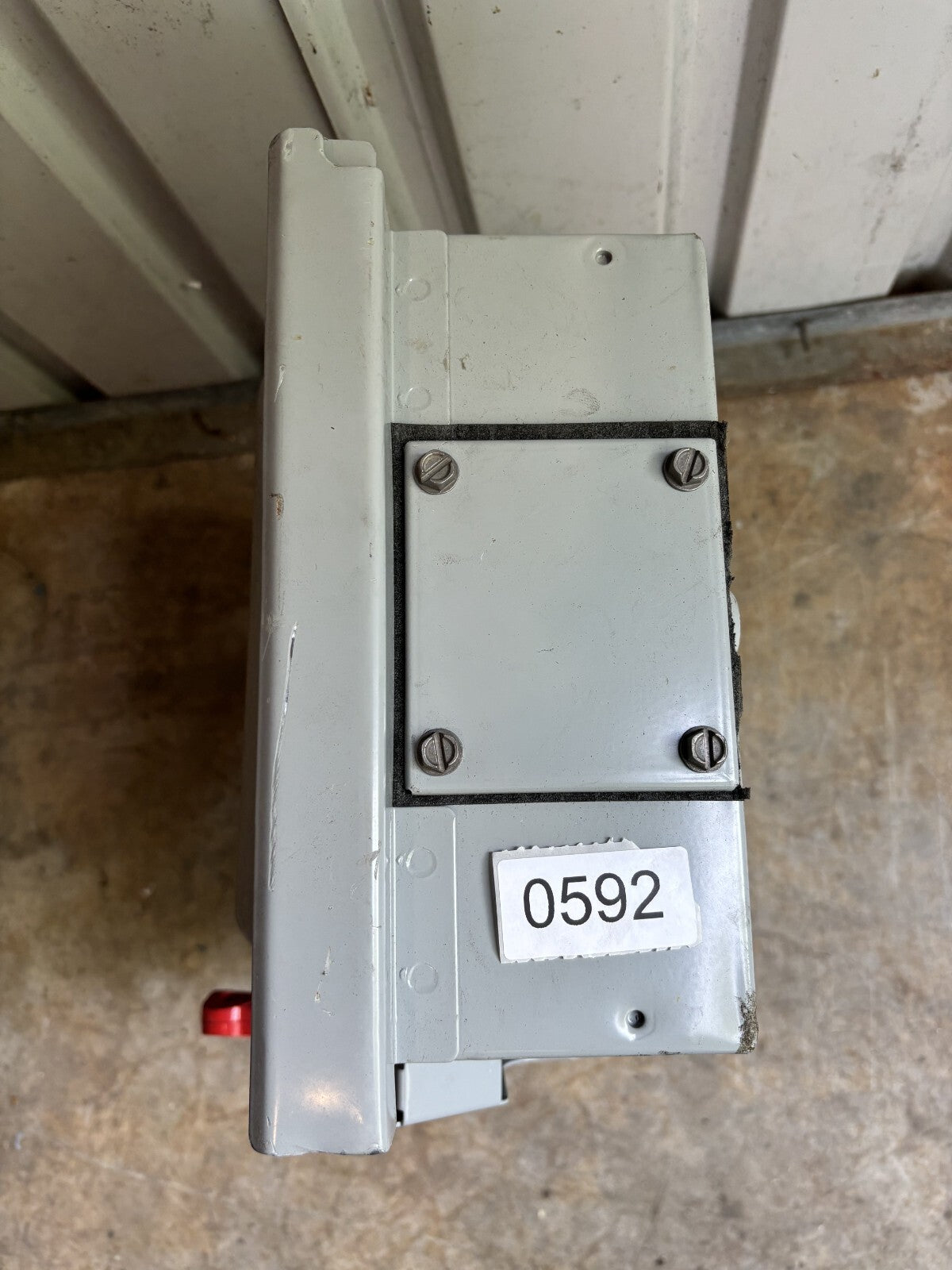

The Siemens HF222NR is a 60 Amp, 240V AC, 2-pole fusible safety switch designed for heavy-duty applications requiring reliable overcurrent protection and safe disconnect capabilities. Constructed with a NEMA 3R-rated steel enclosure, it is suitable for both indoor and outdoor installations, providing durability and protection against environmental elements.
Key Features:
Amperage Rating:60 Amps
Voltage Rating:240V AC
Number of Poles: 2
Number of Wires: 2
Enclosure Type:NEMA 3R (Outdoor use)
Fuse Type:Class J or R fuses (not included)
Neutral Type:Solid neutral included
Horsepower Ratings:
3 hp at 240V AC
Short Circuit Current Rating:200 kA
Operating Temperature Range:-29°C to 85°C

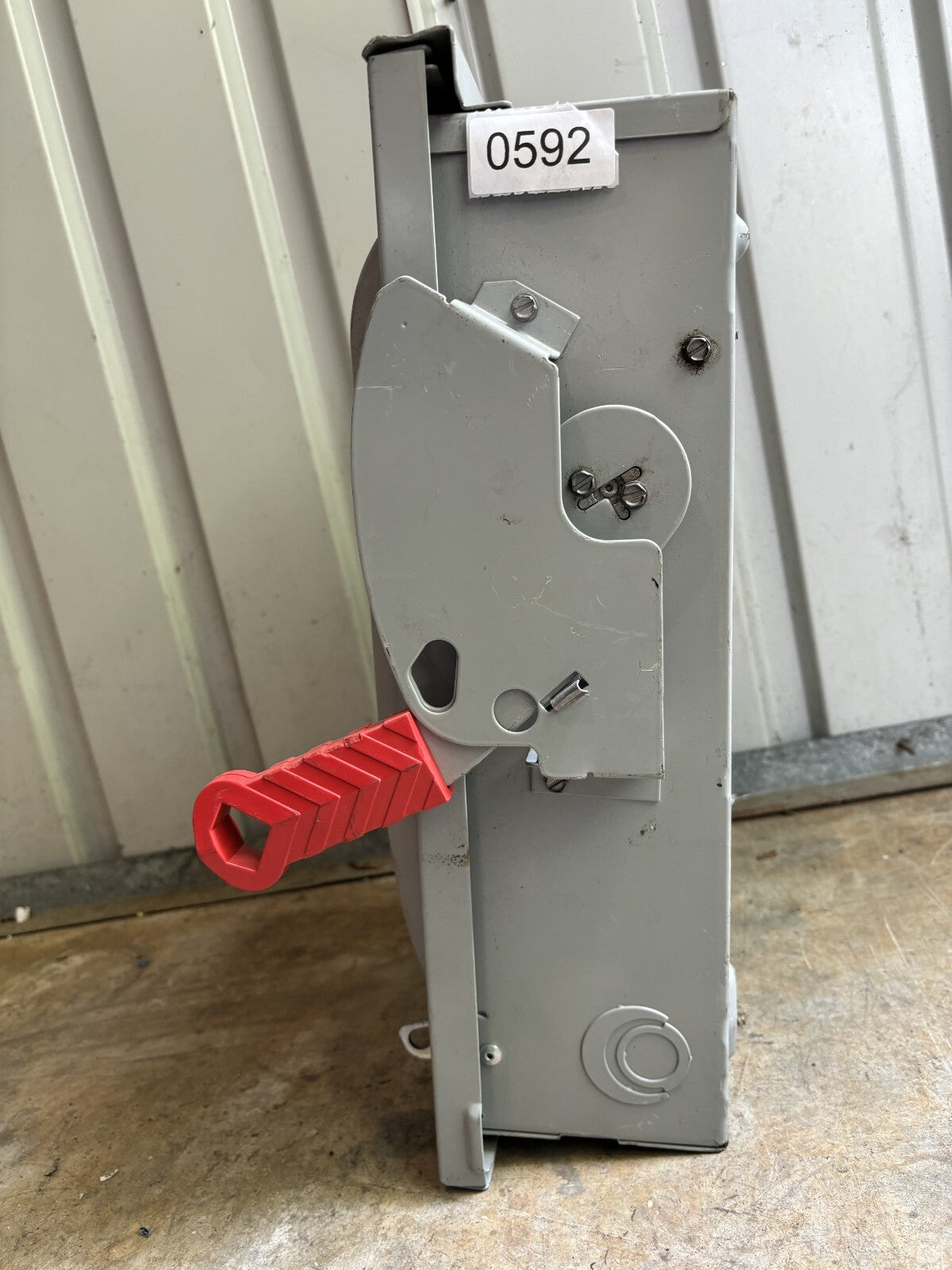

Handle Type:Visible blade, red rotary handle

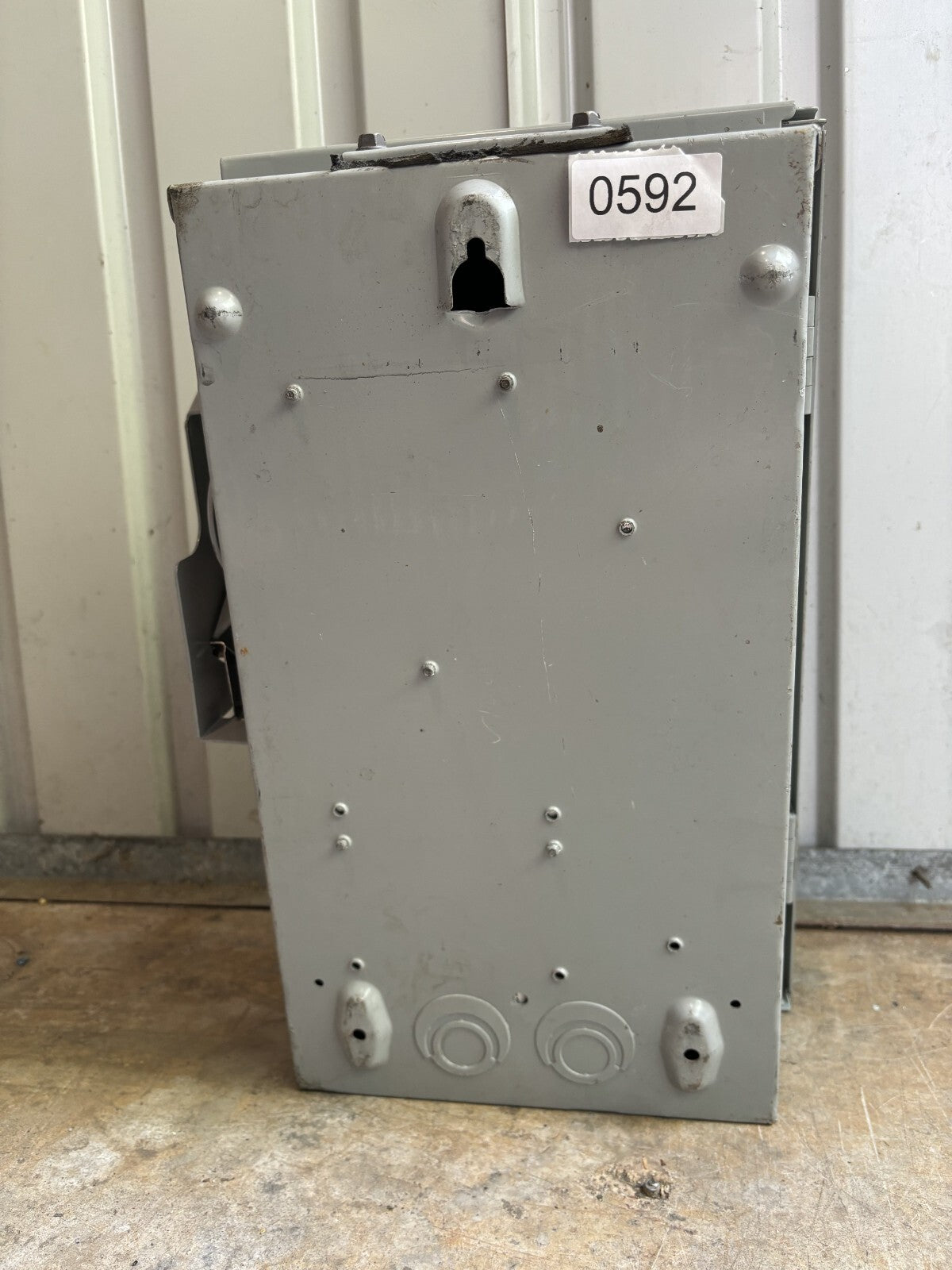

Mounting Style:Surface mount
Material:Galvannealed steel
Dimensions:16.26" H x 10.43" W x 10.17" D

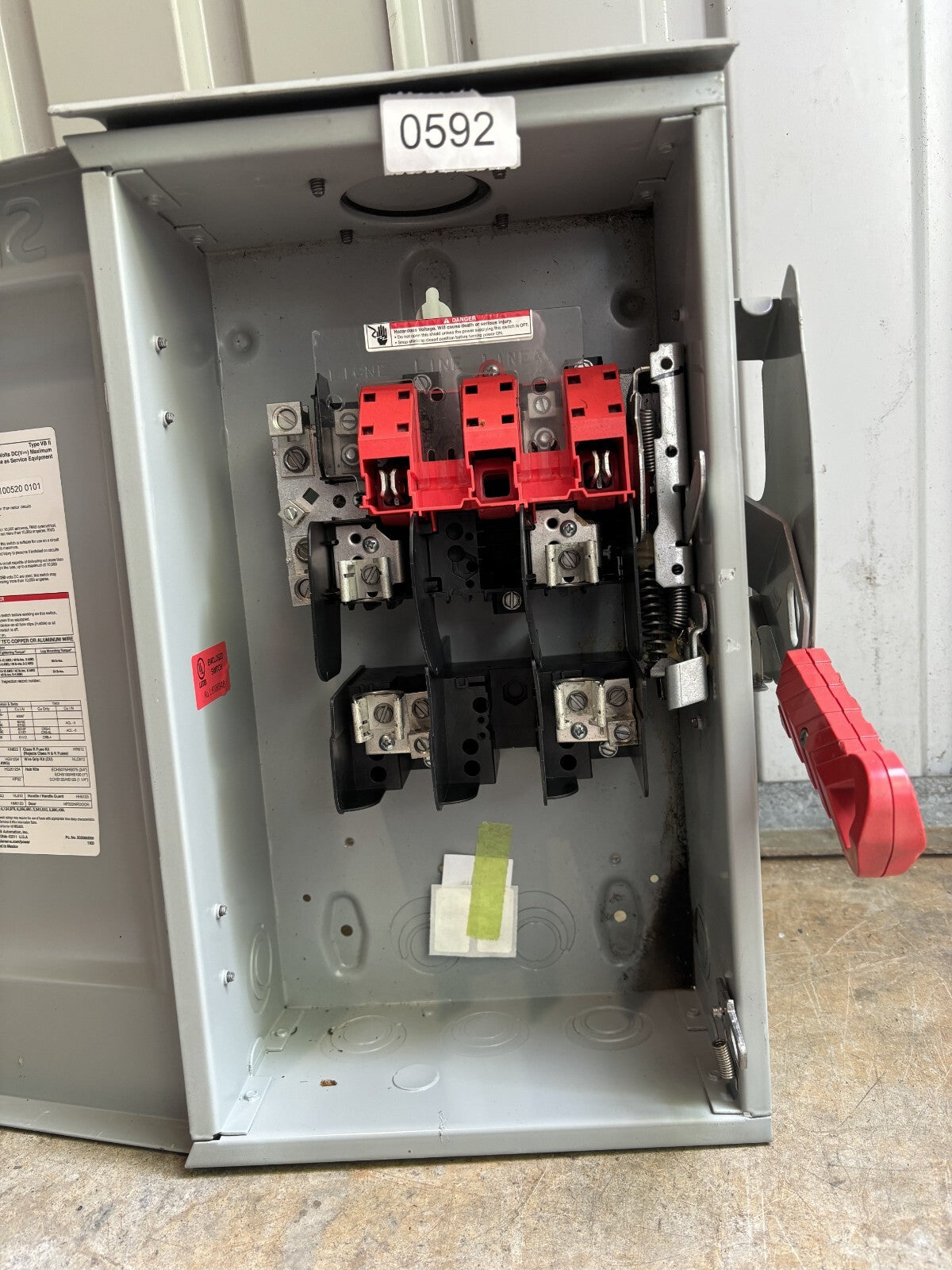

The Siemens HF222NR Fusible Heavy Duty Safety Switch is engineered to provide a secure and reliable means of disconnecting electrical circuits. Its fusible design offers overcurrent protection, while the visible blade mechanism ensures clear indication of the switch position. The NEMA 3R-rated steel enclosure is suitable for both indoor and outdoor installations, offering protection against dust, water, and other environmental factors.

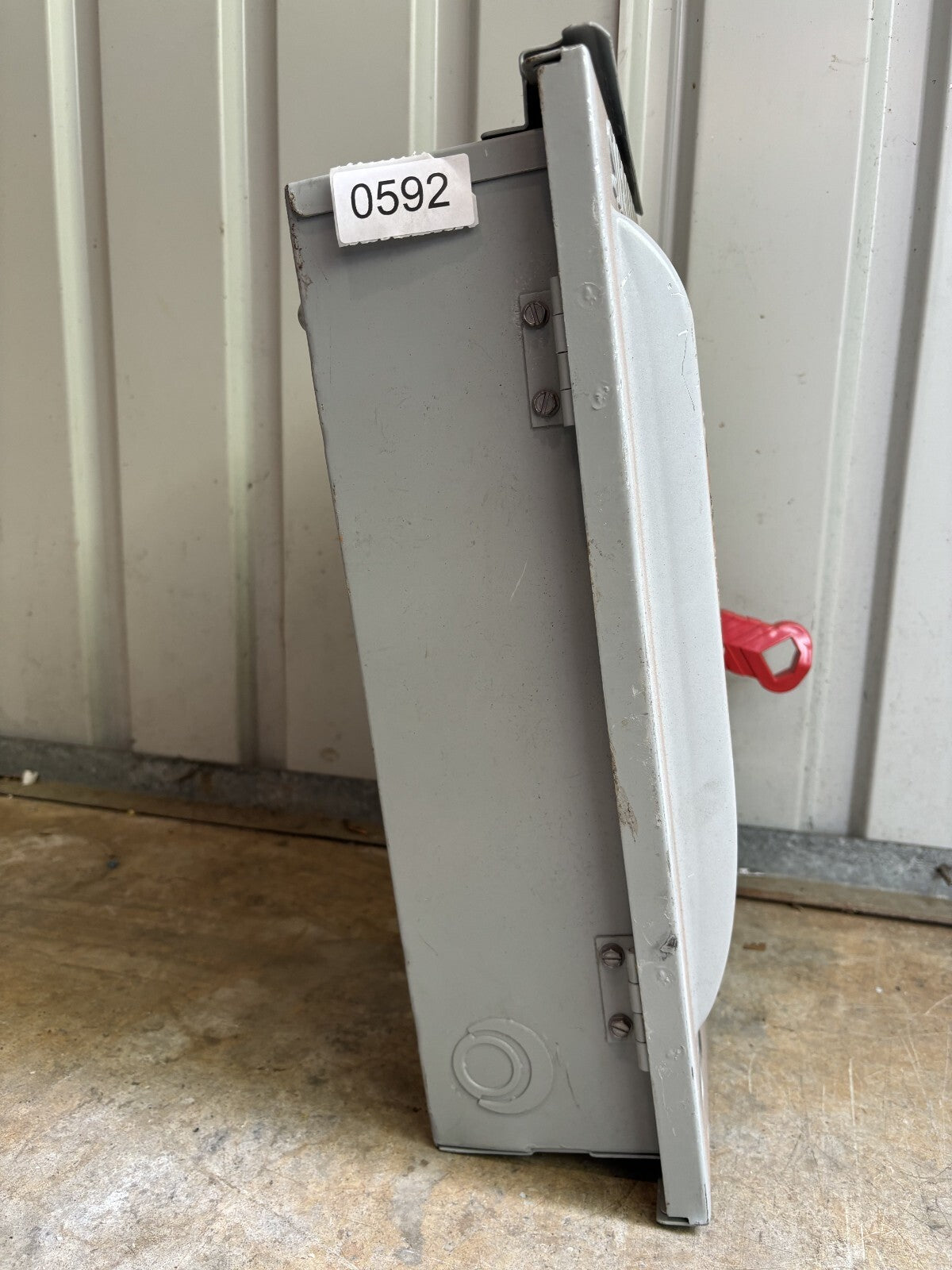

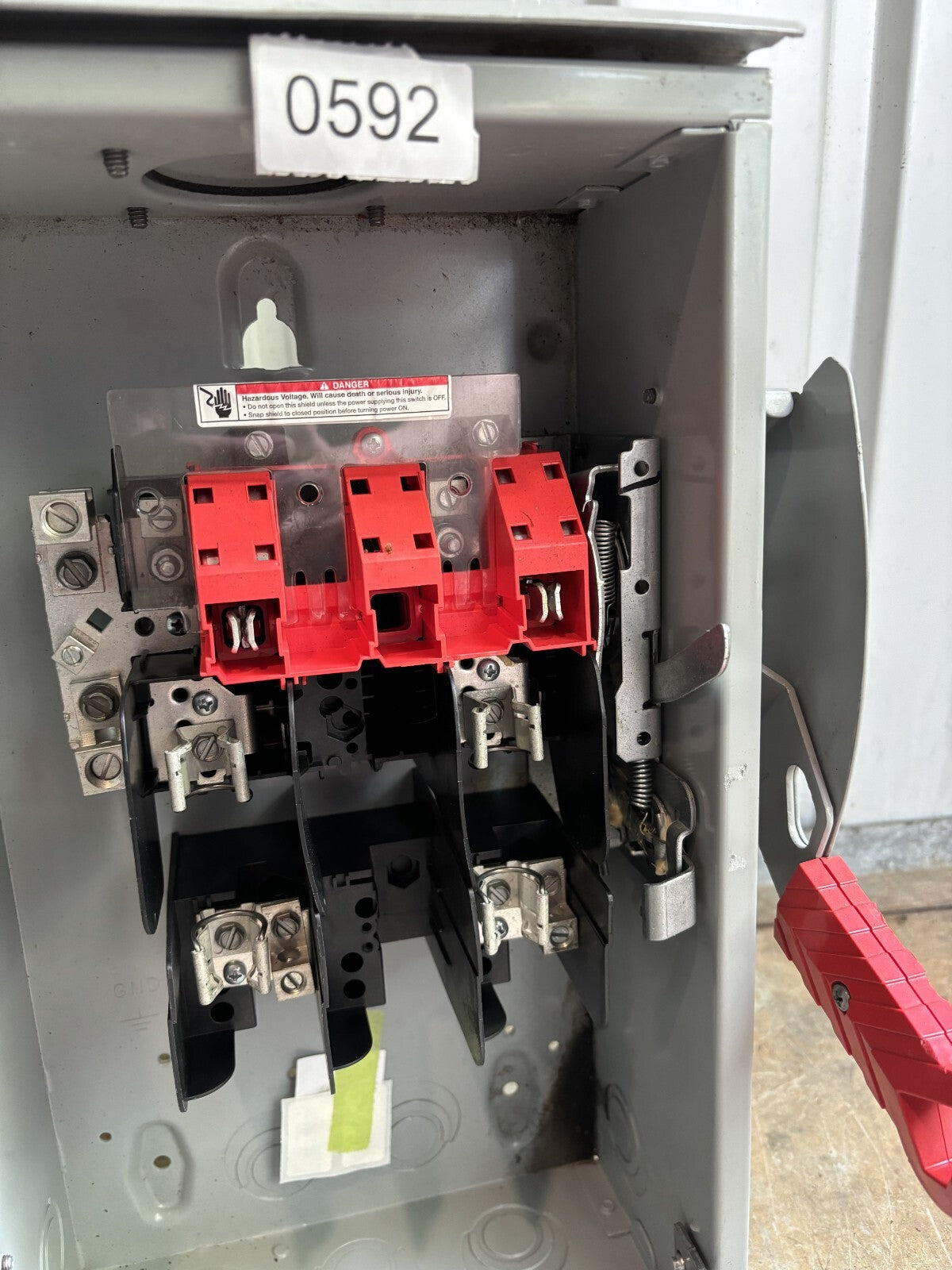

This safety switch is equipped with a solid neutral and is compatible with Class J or R fuses (not included), making it versatile for various applications. The handle is designed for easy operation and can be padlocked in the off position for added safety. The unit also features generous wire bending space and a hinged door that opens 180 degrees for easier wiring.
