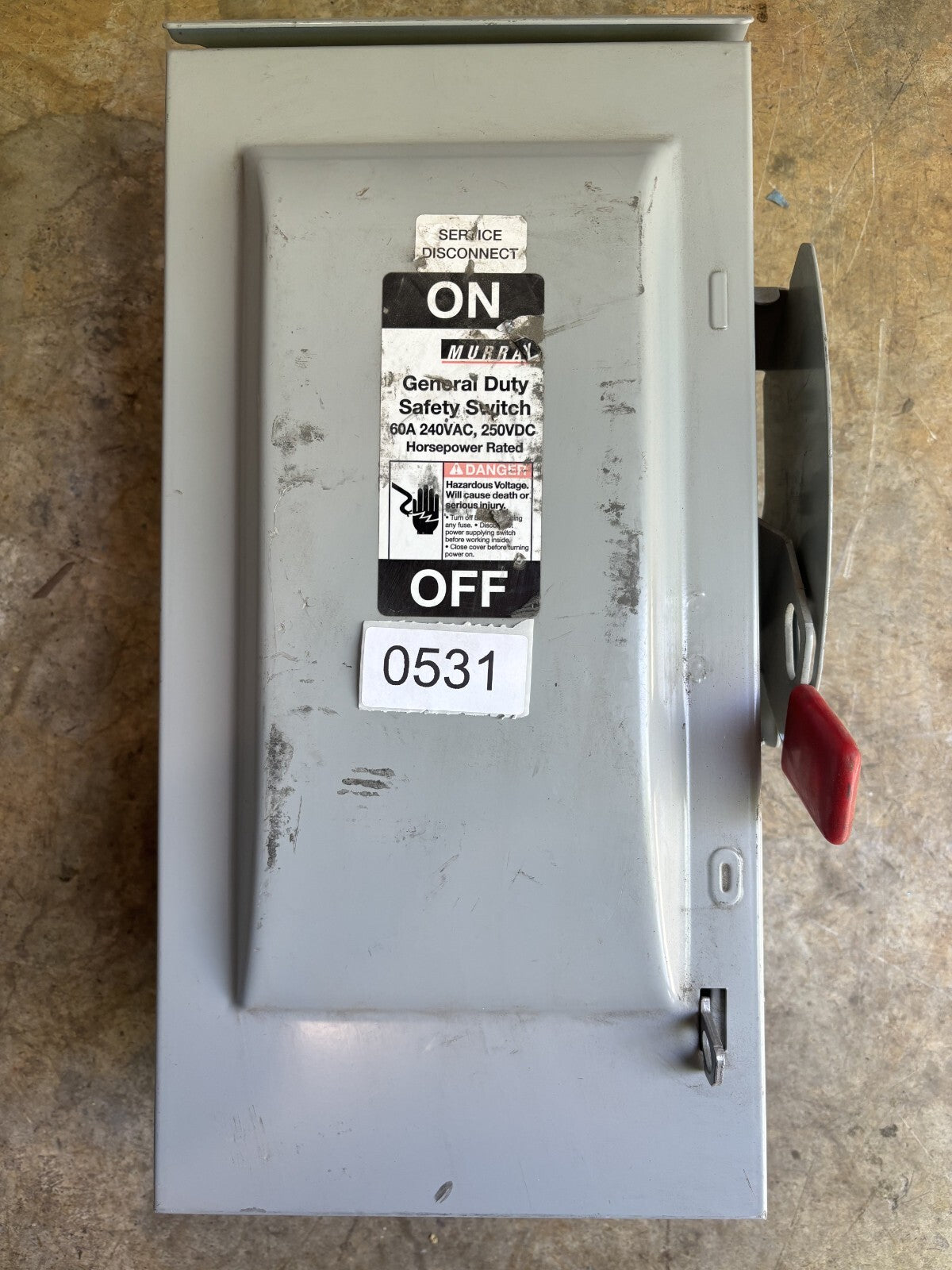

The Murray GHN322NW is a high-performance fusible safety switch designed for demanding industrial and commercial applications. This 60 Amp, 2-pole unit operates at 240 VAC and is engineered to provide reliable overcurrent protection and disconnect capabilities. Ideal for panelboards and motor control centers, the GHN322NW ensures safety and compliance in demanding environments.
Key Features:
Amperage Rating: 60 Amps
Voltage Rating: 240 VAC
Poles: 2-Pole, 3-Wire configuration
Fuse Type: Class H, J, or R (Time Delay)
Interrupting Rating: Suitable for industrial applications
Mounting Type: Surface
Enclosure Type: NEMA 1 (Indoor use)
Frequency Rating: 50/60 Hz
Horsepower Ratings:
15 HP at 240 VAC (3-Phase)
10 HP at 240 VAC (1-Phase)
Dimensions: 6.5" W x 5.5" D x 12.5" H
Temperature Rating: 60/75°C conductor
Compliance: UL 98 Listed, CSA Certified, NEMA KS-1 Standard
