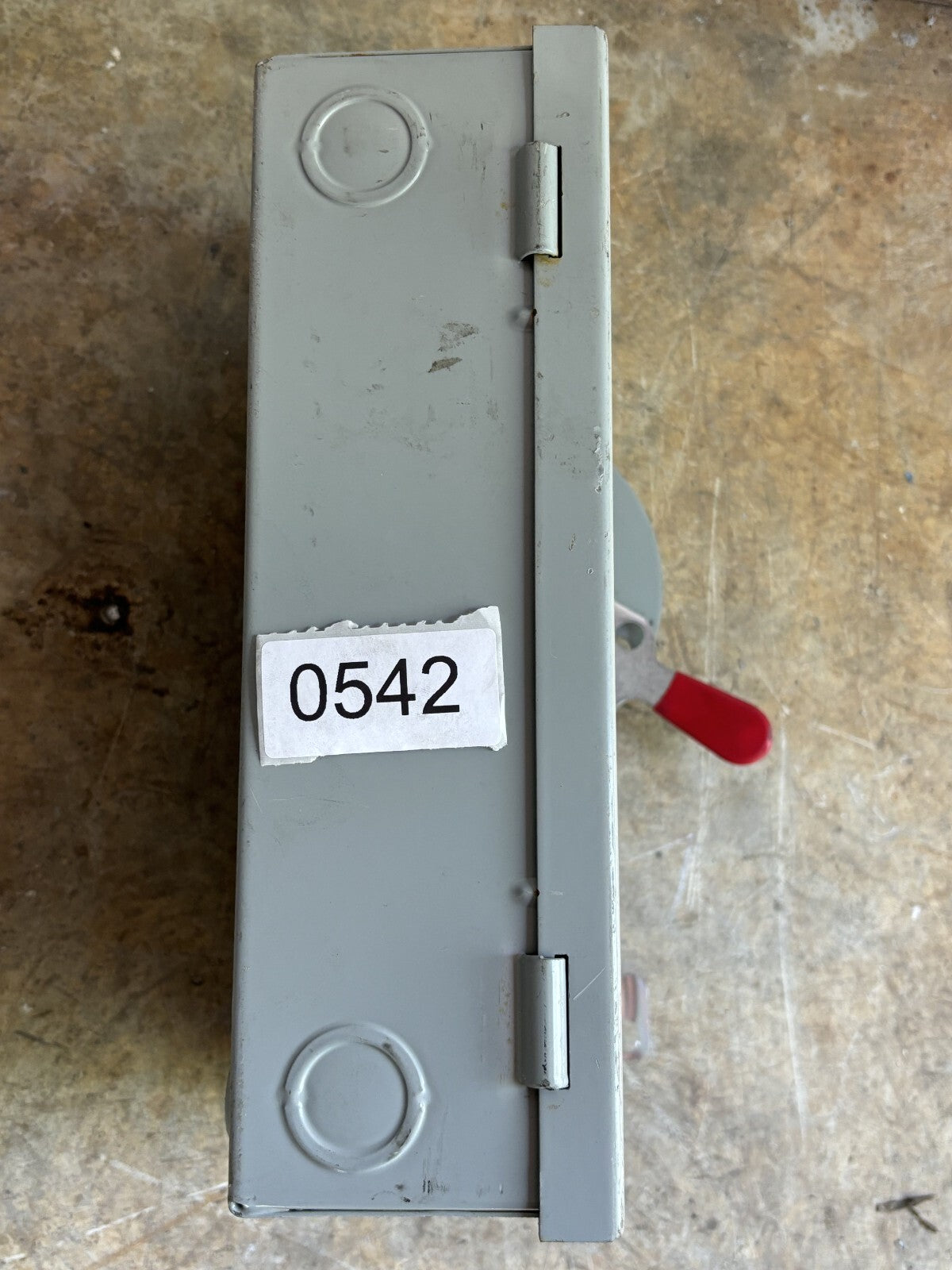

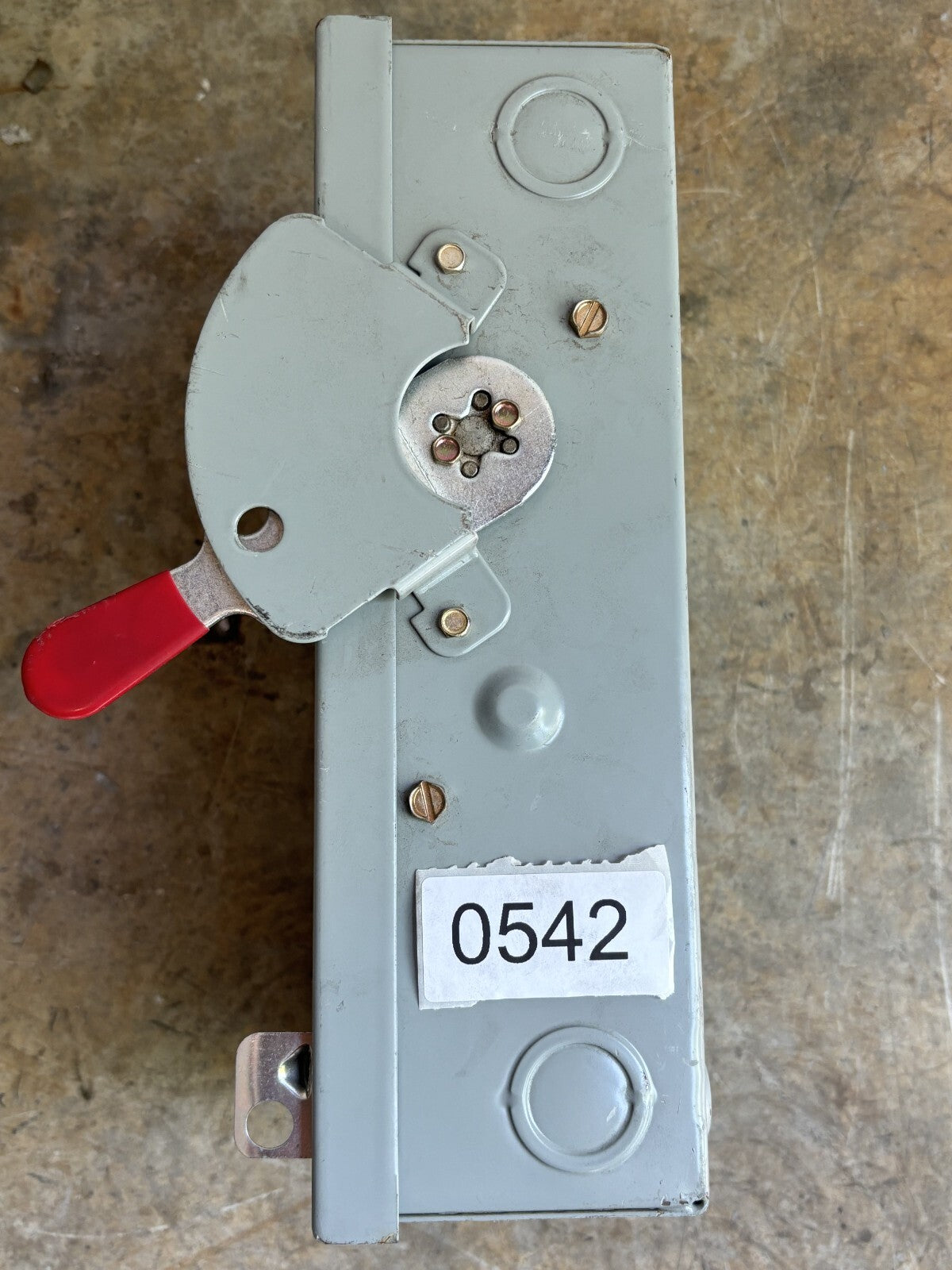

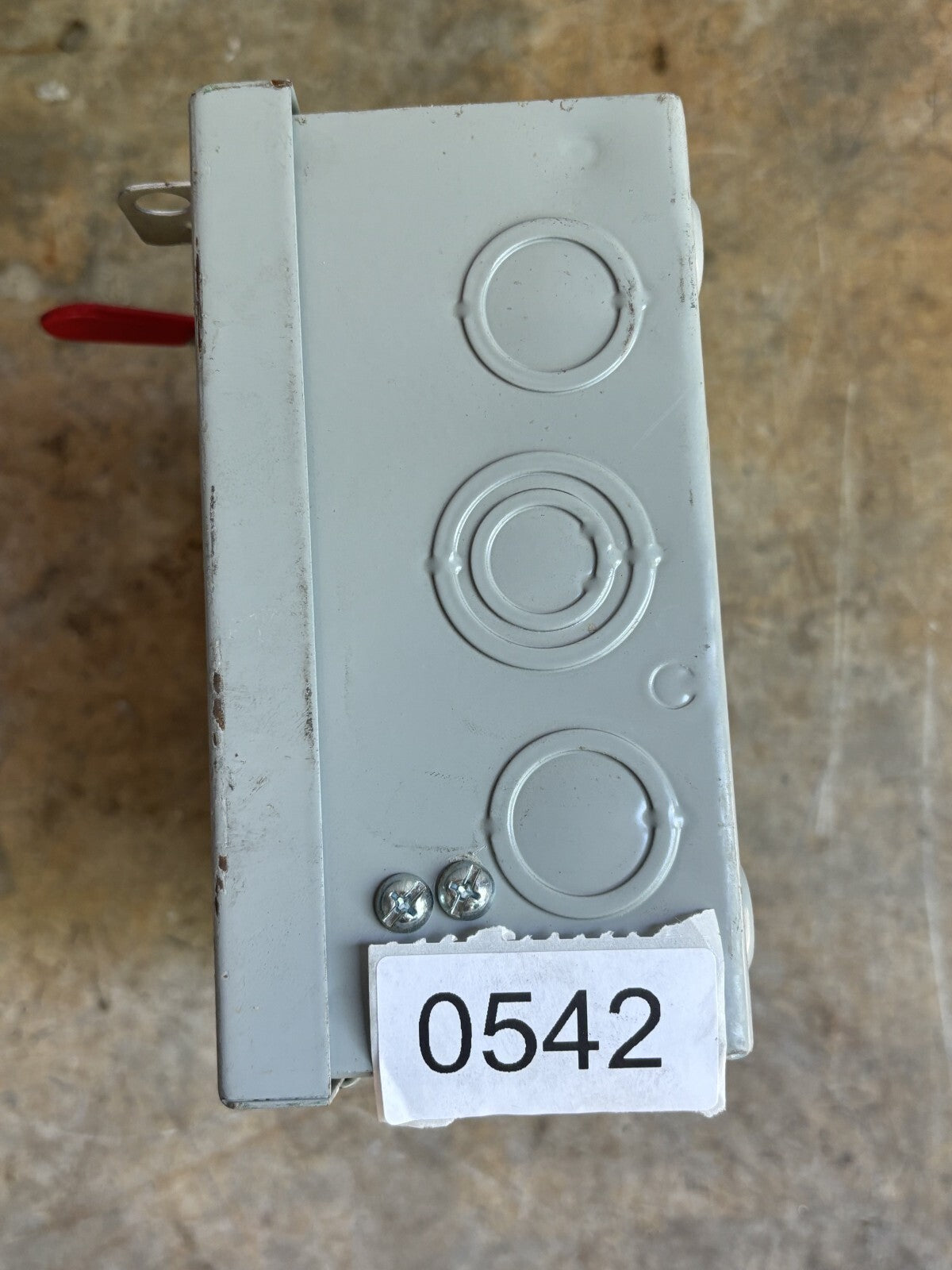

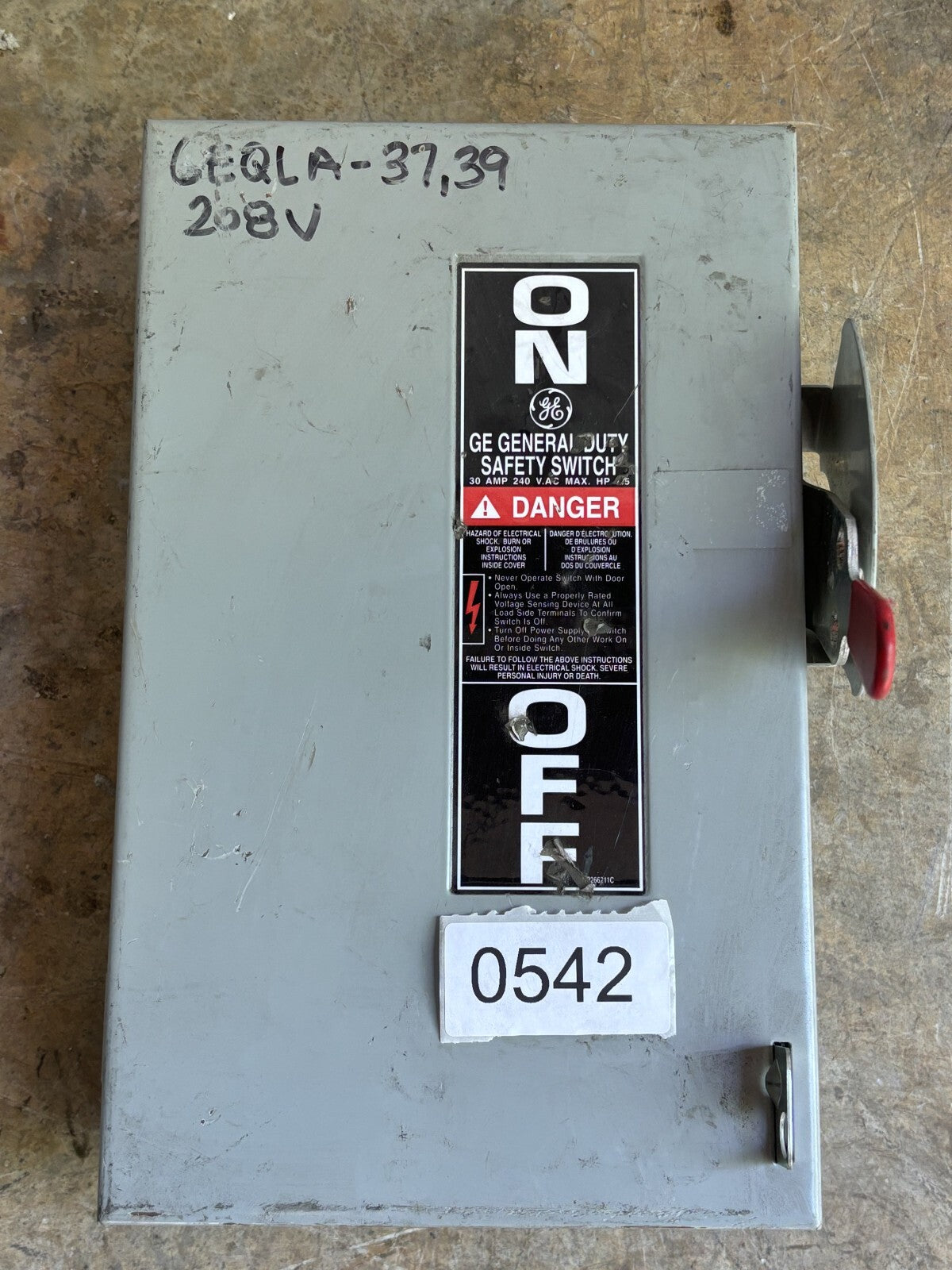

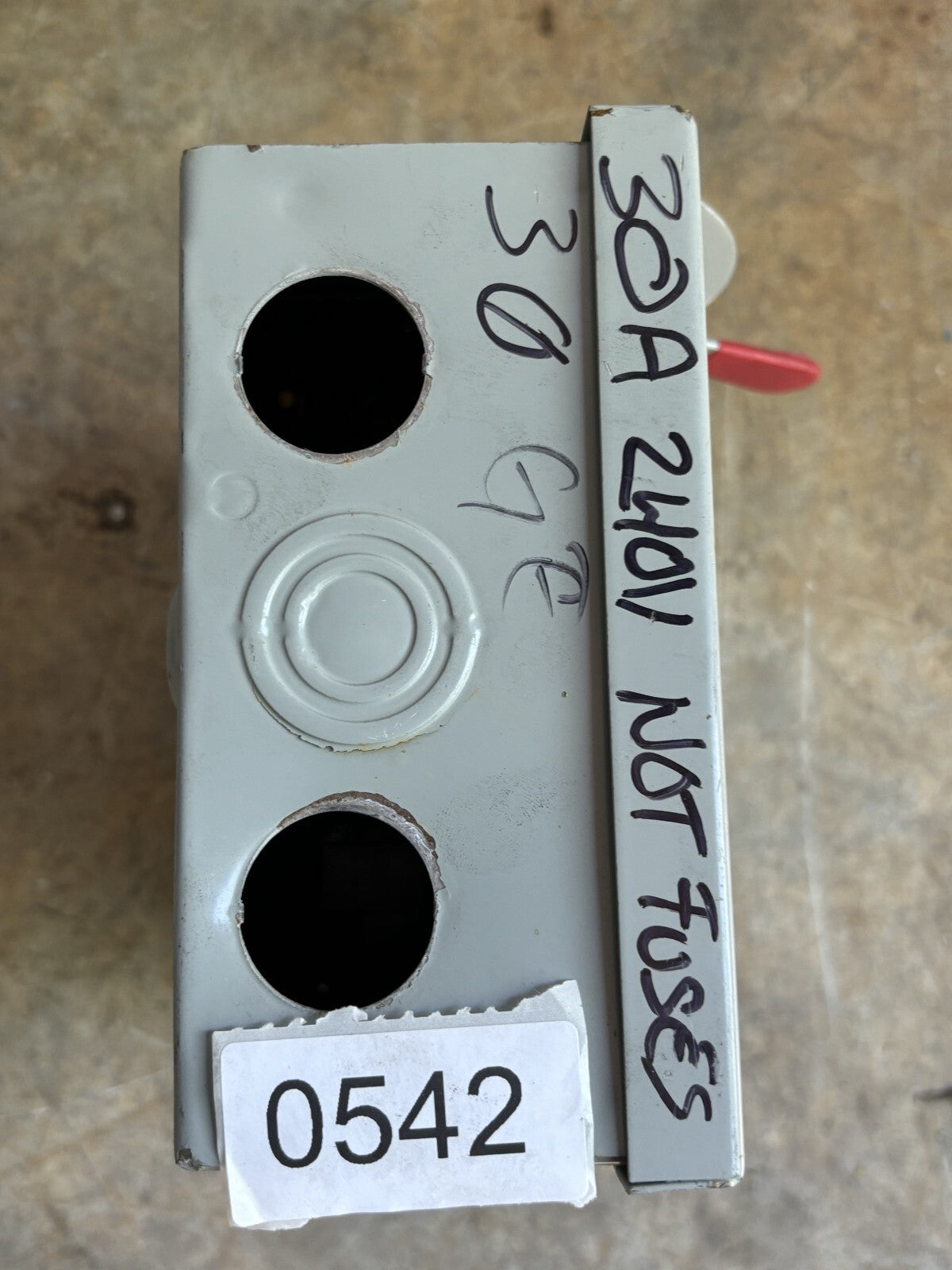

The General Electric TGN3321 is a high-quality, non-fusible general duty safety switch designed for residential and light commercial applications. This 30 Amp, 3-pole unit operates at 240 VAC and is engineered to provide reliable disconnect capabilities and overcurrent protection. Ideal for panelboards and motor control centers, the TGN3321 ensures safety and compliance in critical environments.
Key Features:
Amperage Rating: 30 Amps
Voltage Rating: 240 VAC

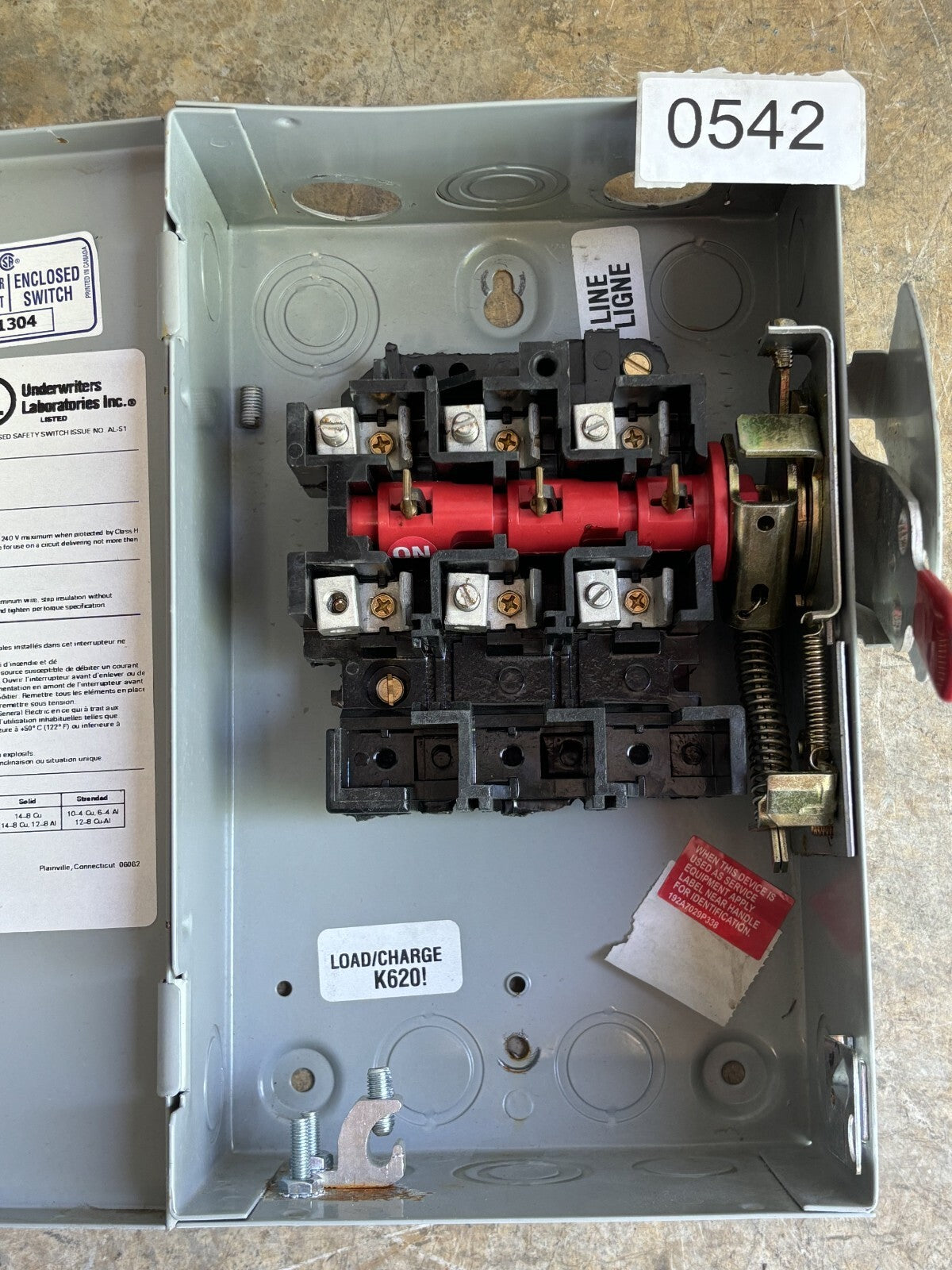

Poles: 3-Pole, 3-Wire configuration
Fuse Type: Non-Fusible
Interrupting Rating: 10 kAIC
Enclosure Type: NEMA 1 (Indoor use)
Mounting Type: Surface
Frequency Rating: 50/60 Hz
Horsepower Ratings:
3 HP at 240 VAC (1-Phase)
7.5 HP at 240 VAC (3-Phase)
Dimensions: 6.4" W x 3.3" D x 10.3" H
Temperature Rating: 60/75°C conductor
Compliance: UL 98 Listed, CSA Certified, NEMA KS-1 Standard
