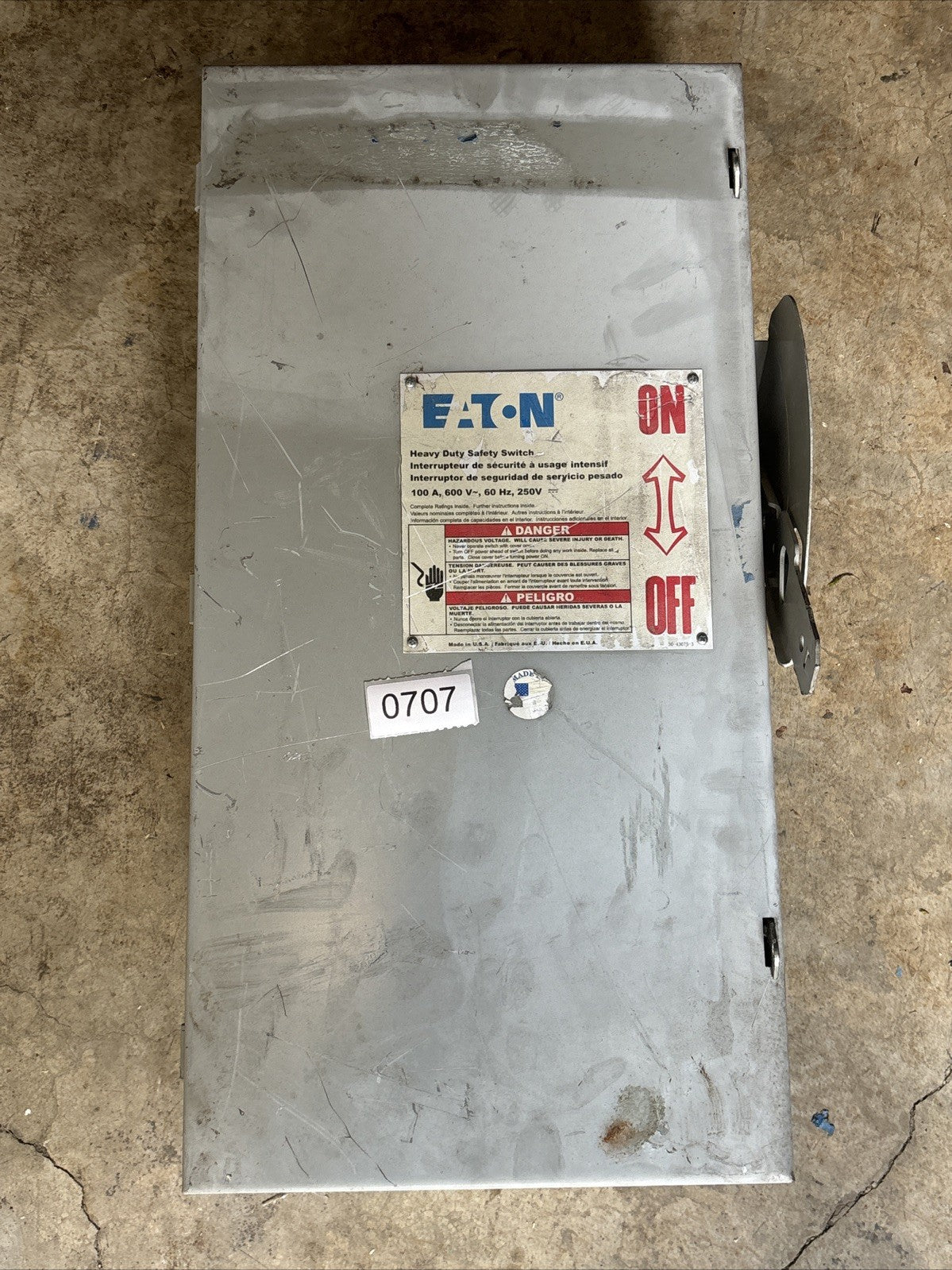

The Eaton DH363FGK is a robust and reliable heavy-duty fusible safety switch designed to provide safe and efficient electrical disconnection in industrial and commercial applications. With a 100 Amp rating and 600 VAC voltage capacity, this switch is engineered to handle demanding power requirements. Its NEMA 1 indoor-rated enclosure ensures protection against dust and incidental contact, making it suitable for various indoor installations.
Key Features:
Amperage Rating: 100 Amps
Voltage Rating: 600 VAC
Poles: 3-Pole, 3-Wire configuration
Enclosure Type: NEMA 1 – Indoor use
Fusible Type: Accepts Class H time-delay fuses
Horsepower Ratings:
30 HP at 480/600 VAC (1-Phase)
40 HP at 480 VAC (3-Phase)
60 HP at 600 VAC (3-Phase)
Short Circuit Current Rating: 100 kA
Construction: Painted steel enclosure
Dimensions: 22.5" H x 12.5" W x 8.5" D
Compliance: UL 98 Listed, NEMA KS-1 Standard
Safety and Operational Features:

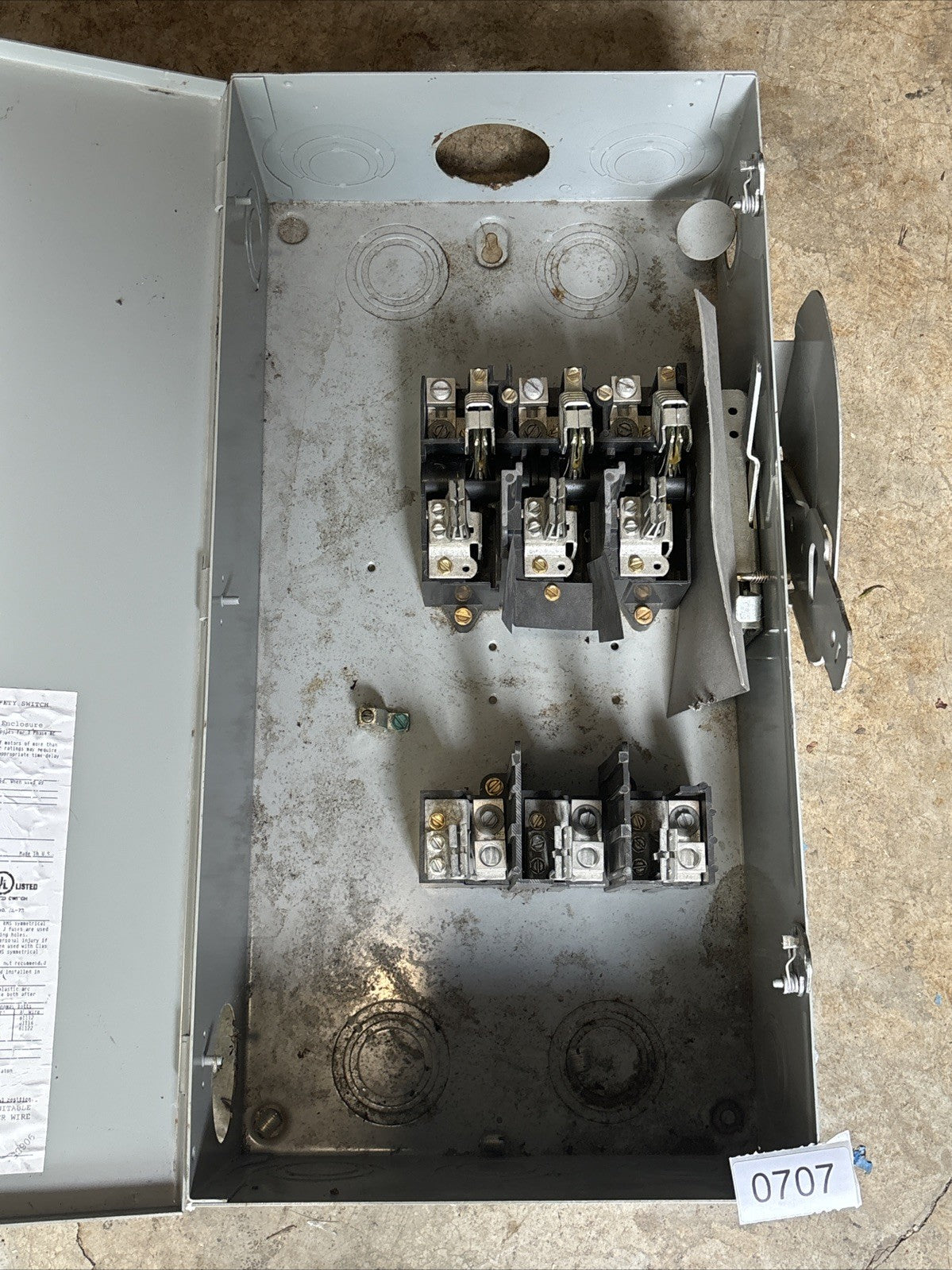

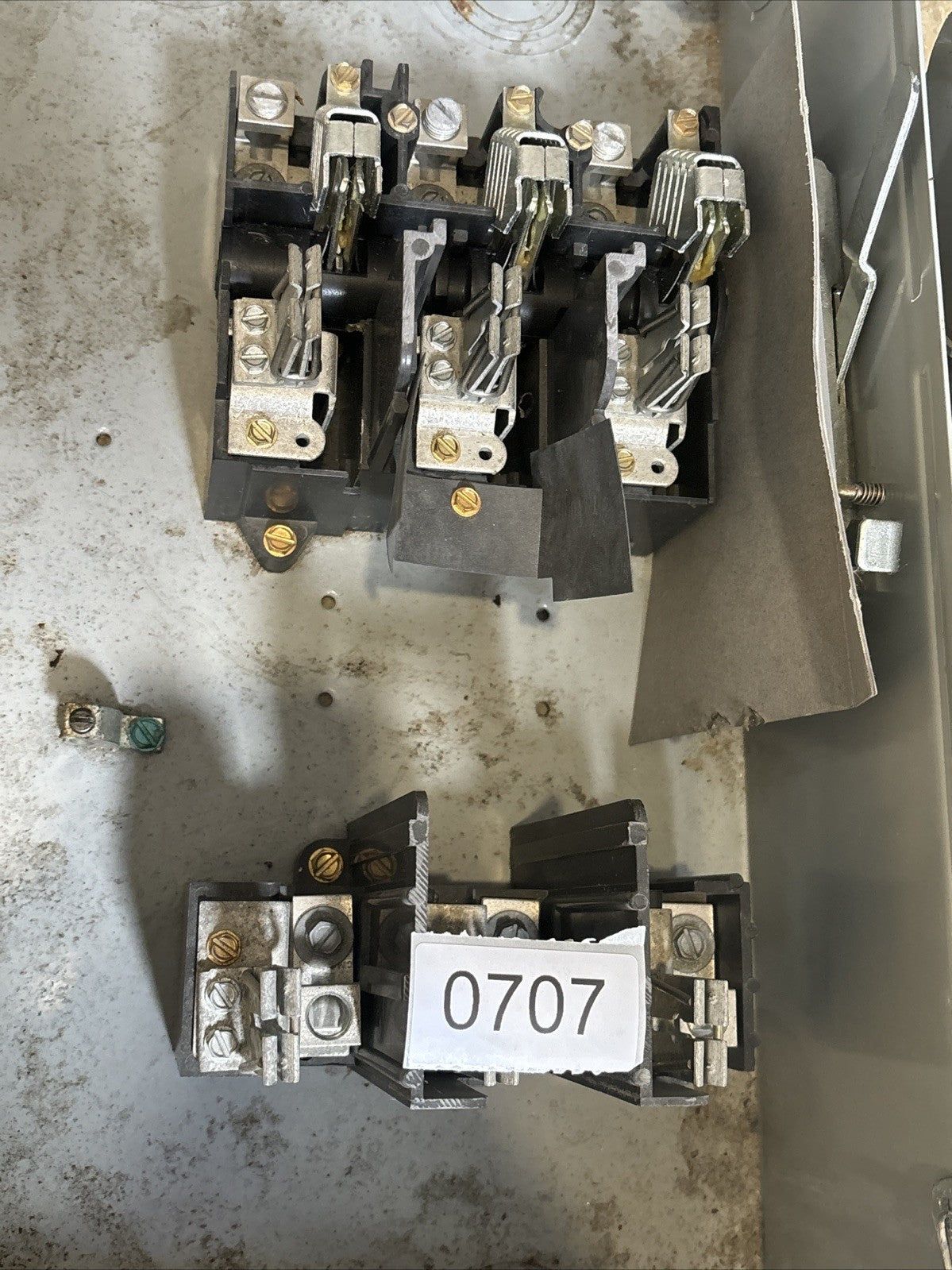

Visible Blade Mechanism: Provides a clear indication of the switch position for enhanced safety.
Interlocking Door: Prevents access to internal components when the switch is in the ON position.
Triple Padlocking Capability: Allows for secure locking in the OFF position to prevent unauthorized operation.
Clear Line Shield: Protects against accidental contact with energized parts and enables testing without removing the shield.
Fuse Pullers: Built-in on NEMA 1 enclosures for easy fuse replacement.
