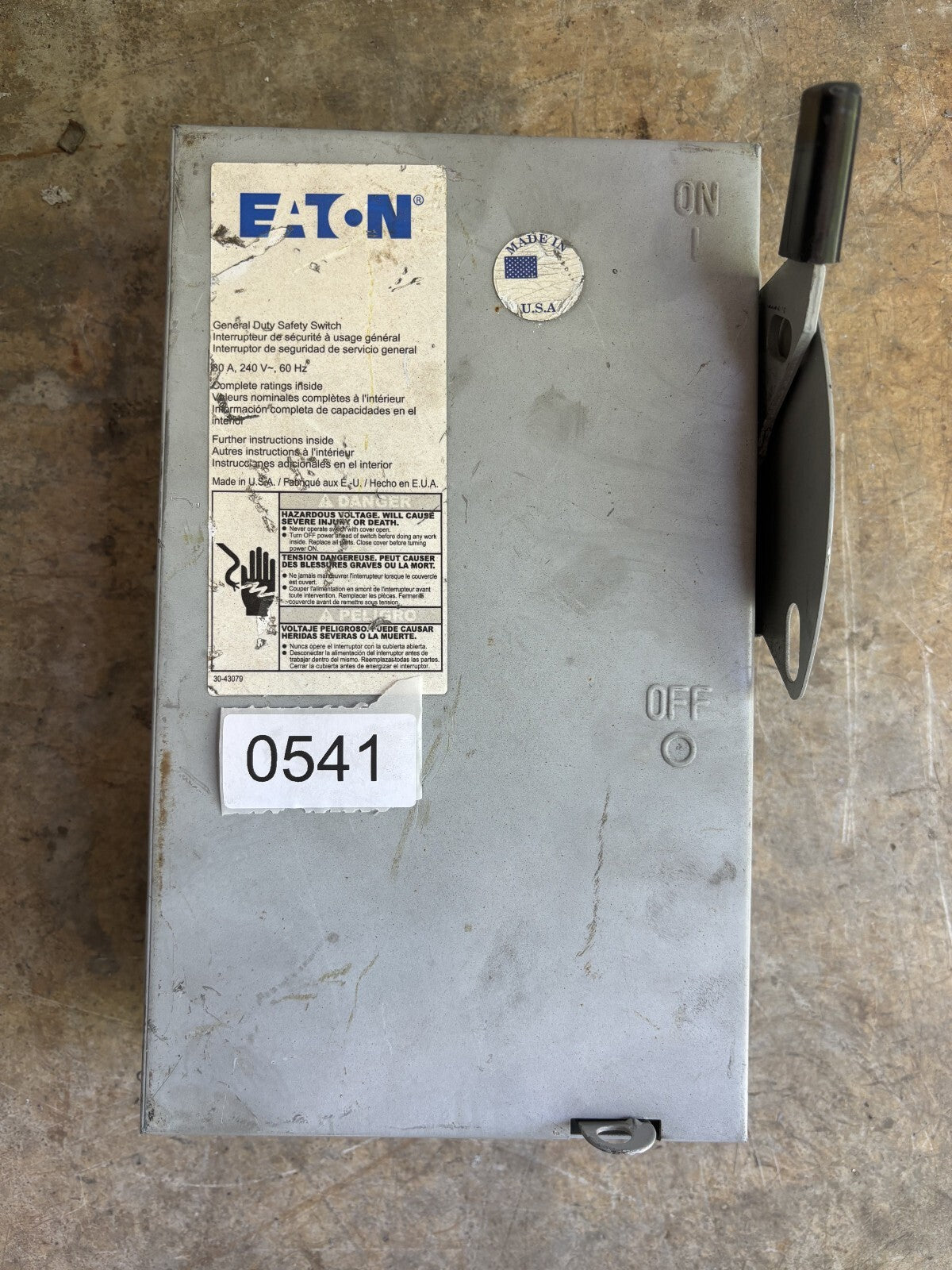

Eaton DG221NGB General Duty Safety Switch 30 Amp 240 Vac

The Eaton DG221NGB is a high-quality, fusible general duty safety switch designed for residential and light commercial applications. This 30 Amp, 2-pole unit operates at 240 VAC and is engineered to provide reliable disconnect capabilities and overcurrent protection. Ideal for panelboards and motor control centers, the DG221NGB ensures safety and compliance in critical environments.

Key Features:

• Amperage Rating: 30 Amps

• Voltage Rating: 240 VAC

• Poles: 2-Pole, 3-Wire configuration

• Fuse Type: Cartridge, Class H (fuses not included)

• Interrupting Rating: 10 kAIC

• Enclosure Type: NEMA 1 (Indoor use)

• Mounting Type: Surface

• Frequency Rating: 60 Hz

• Horsepower Ratings:

  • 1.5 to 3 HP at 240 VAC (Single-phase)

  • 3 to 7.5 HP at 240 VAC (Three-phase)

• Dimensions: 5.73" L x 6.1" W x 6.5" H

• Material: Painted steel

• Phase: 1/3

• Compliance: UL 98 Listed, NEMA KS-1 Standard
