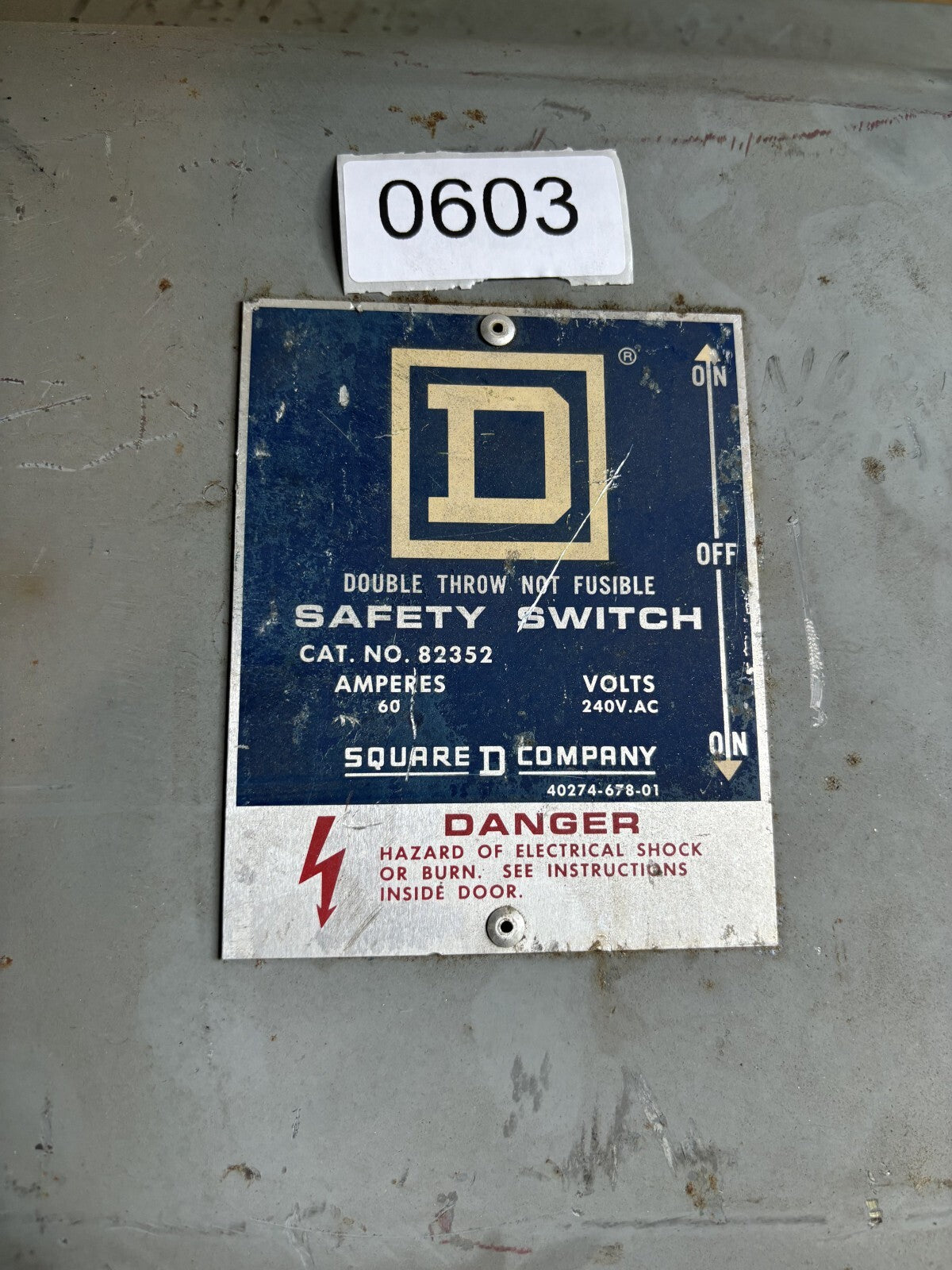

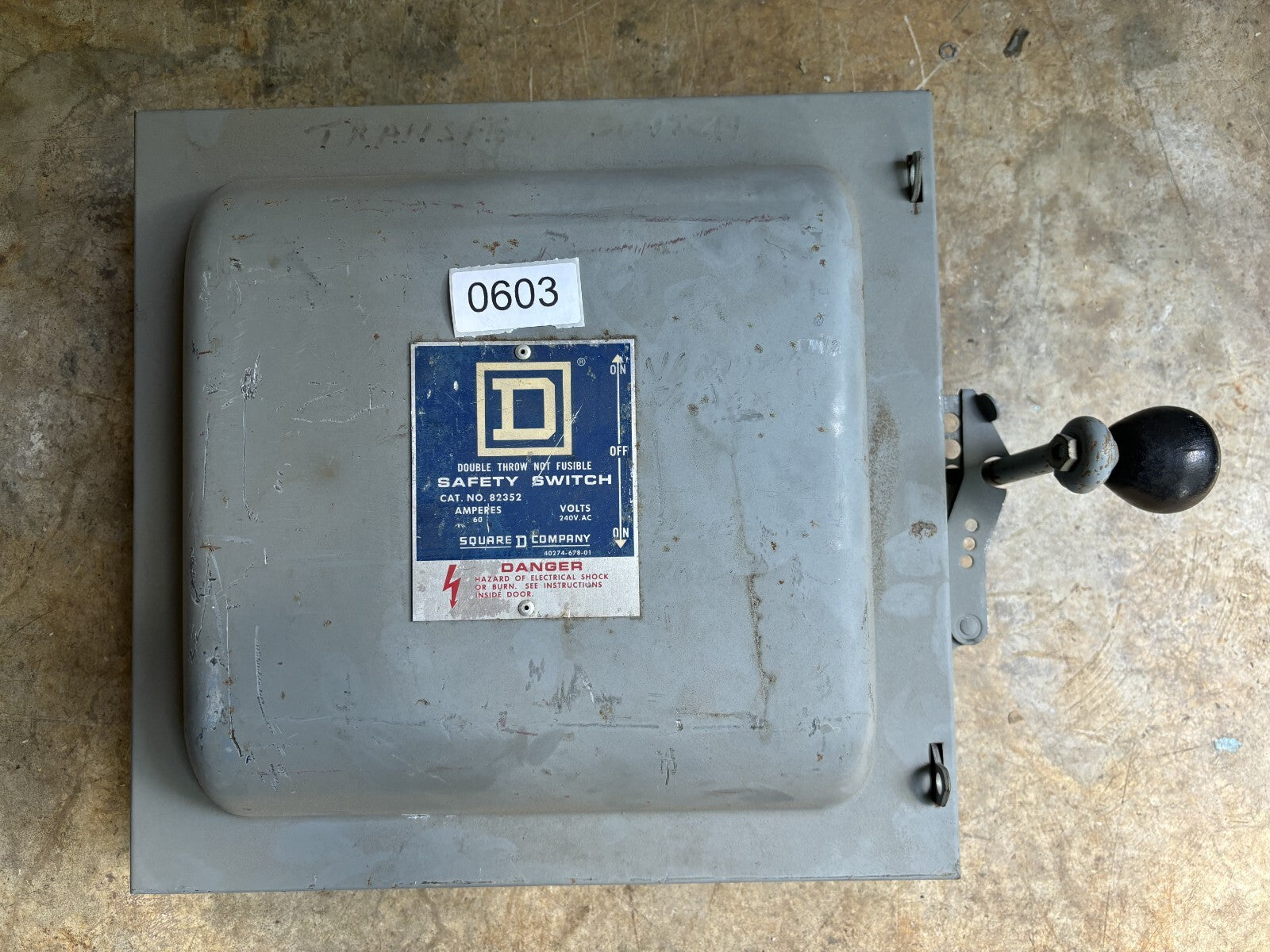

The Square D 82352 is a 60 Amp, 240V AC, 3-pole non-fusible double throw safety switch designed for residential and light commercial applications. Its primary function is to transfer a load from one power source to another, providing a reliable means of disconnect. Constructed with a NEMA 1-rated steel enclosure, it is suitable for indoor installations.
Key Features:
Amperage Rating:60 Amps
Voltage Rating:240V AC
Number of Poles: 3
Enclosure Type:NEMA 1 (Indoor use)
Fuse Type:Non-fusible
Horsepower Ratings:
15 hp at 240V AC
Operating Temperature Range:-29°C to 85°C
Handle Type:Visible blade, red rotary handle
Mounting Style:Surface mount

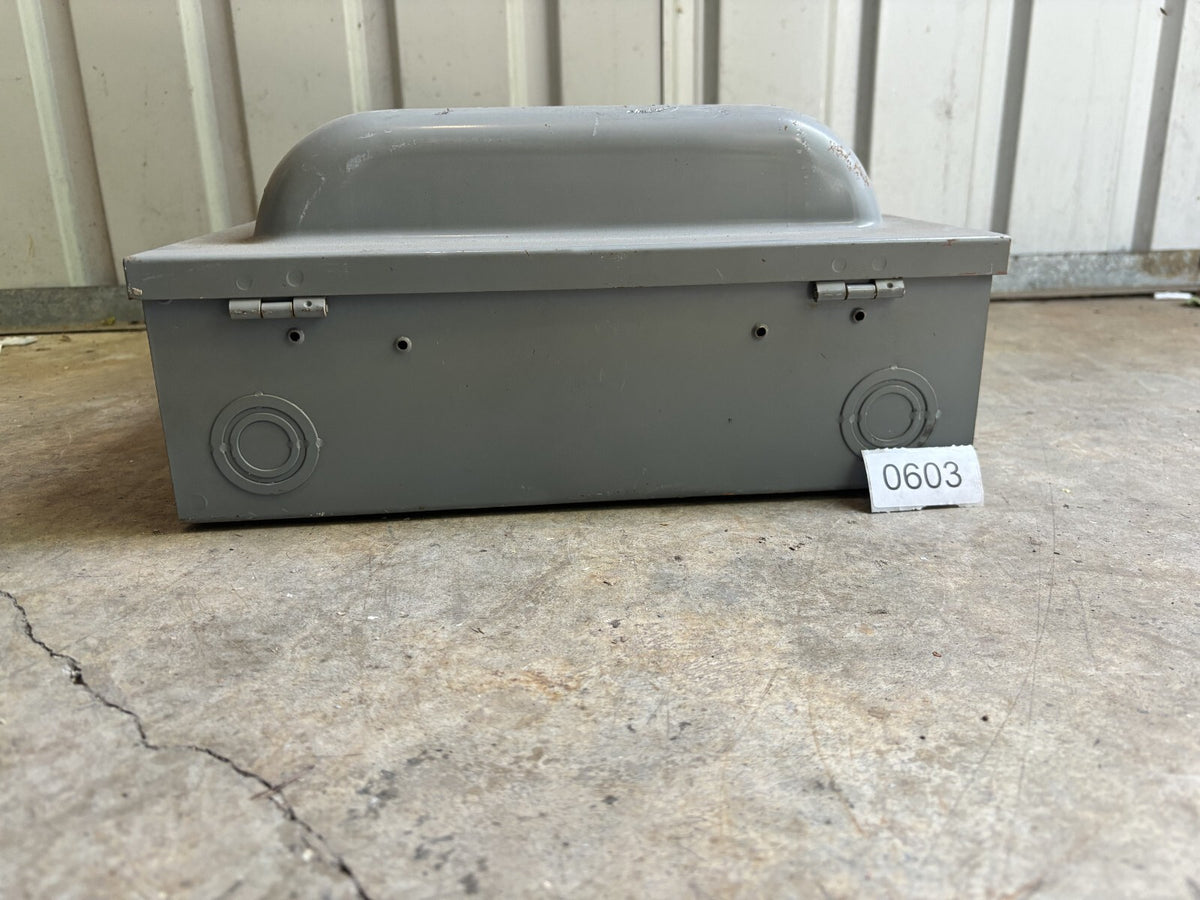

Material:Steel with a painted finish
Dimensions:Approximately 11.96" H x 29.94" W x 6.93" D

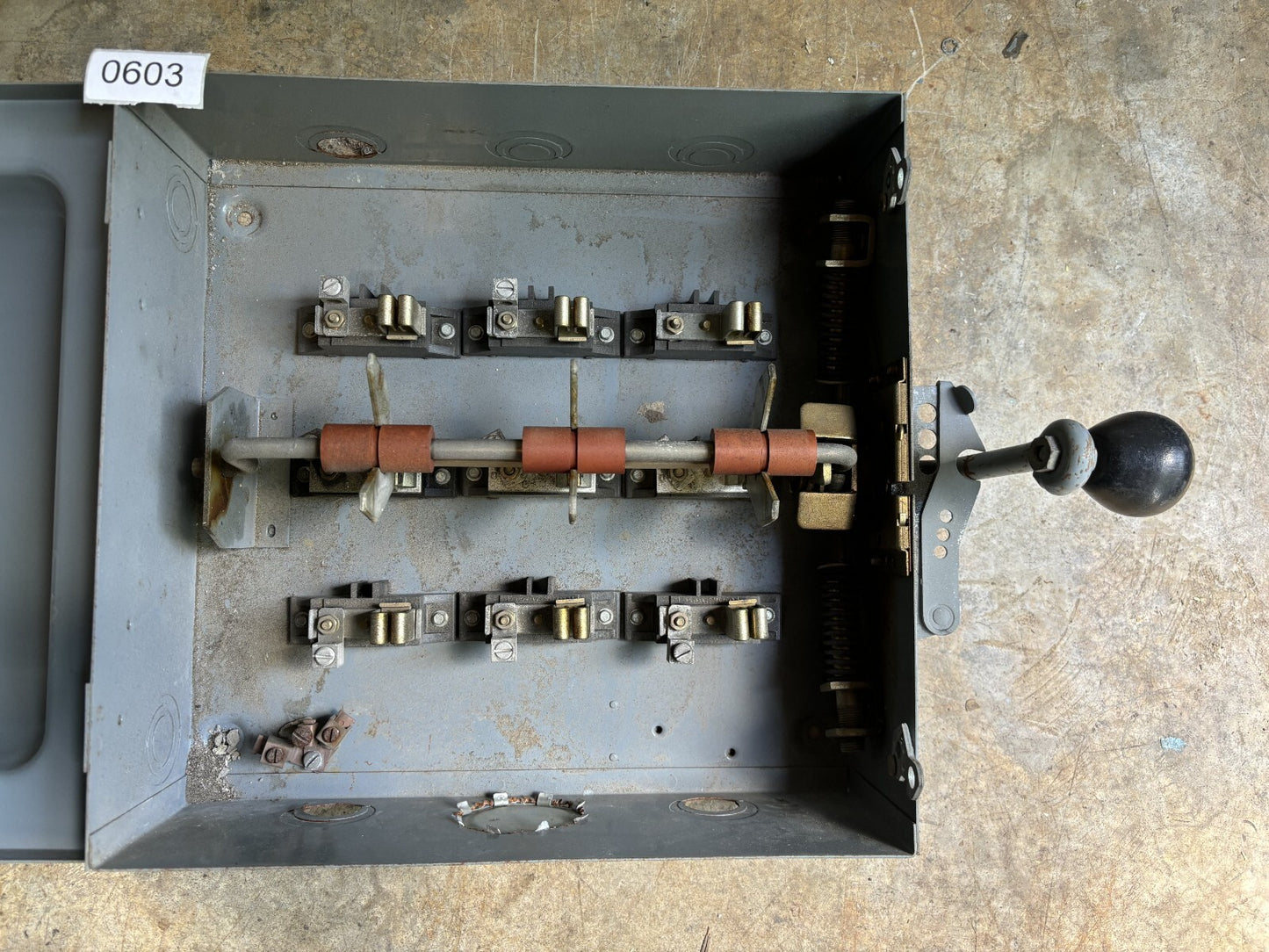

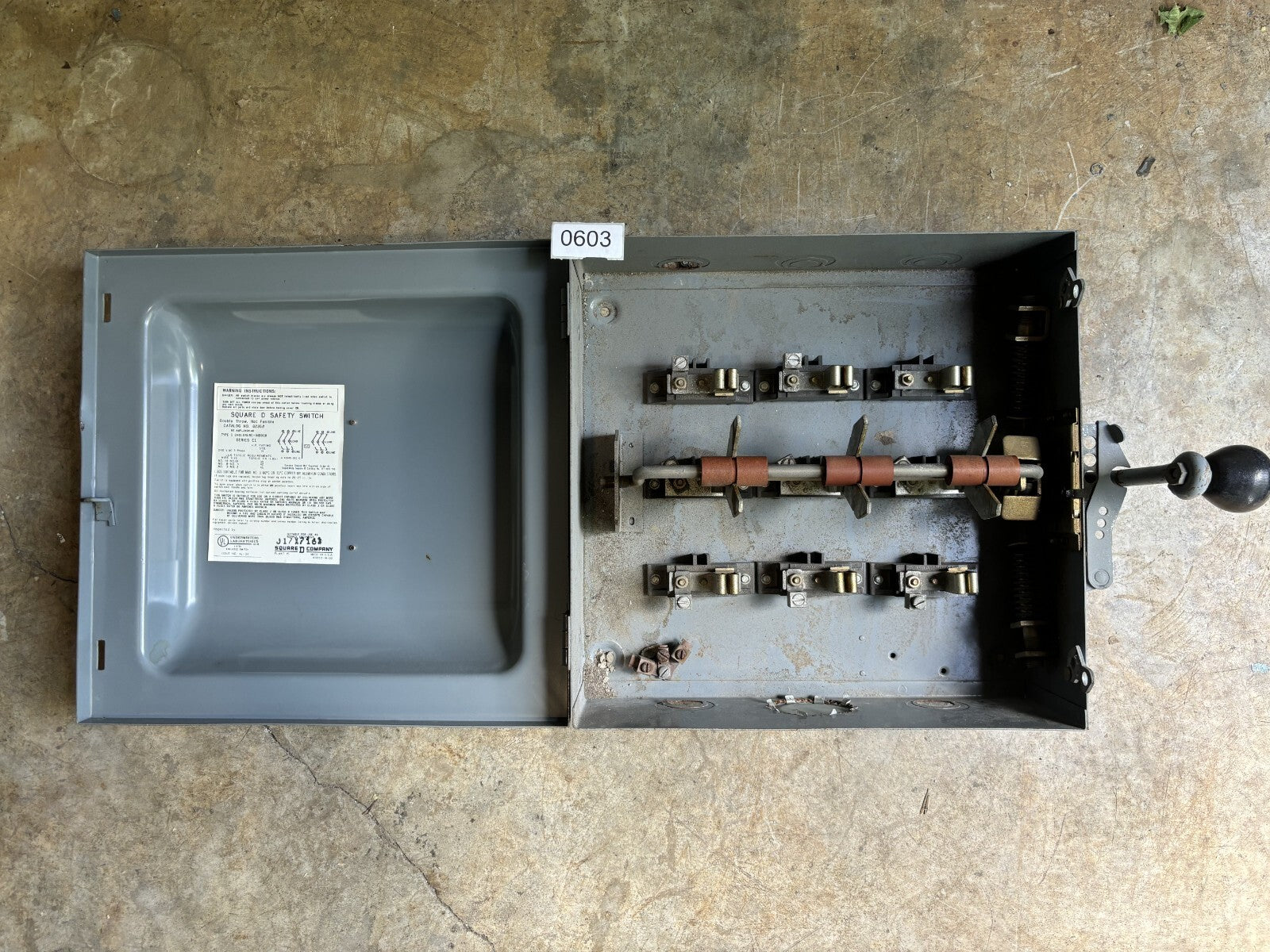

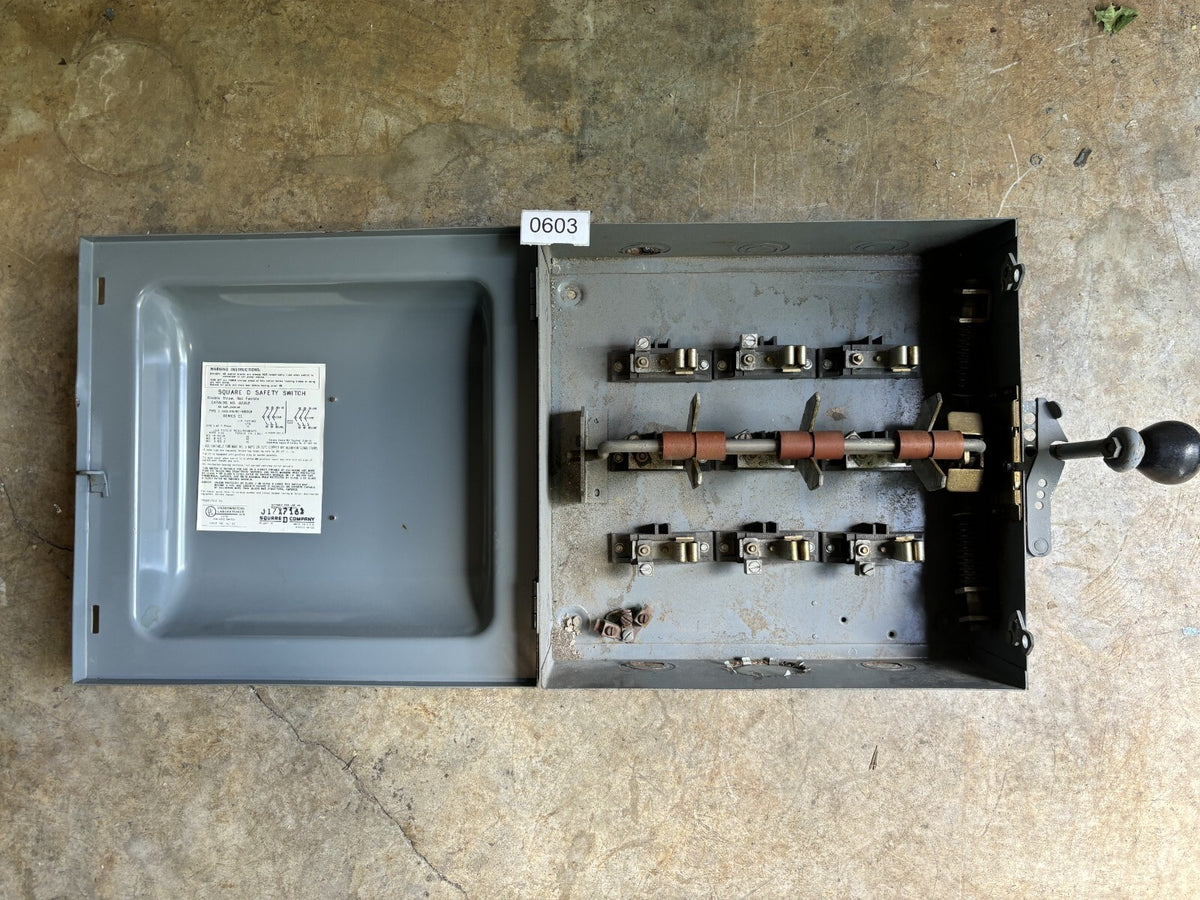

The Square D 82352 Non-Fusible Double Throw Safety Switch is engineered to provide a secure and reliable means of transferring electrical loads between two power sources. Its non-fusible design ensures a visible means of disconnect, while the visible blade mechanism offers clear indication of the switch position. The NEMA 1-rated steel enclosure is suitable for indoor installations, providing protection against dust and contact with live parts.
This safety switch features a red rotary handle designed for hook stick operation and can be padlocked in the off position with up to three padlocks, enhancing safety during maintenance. The unit is ideal for applications requiring a manual transfer of power sources.
